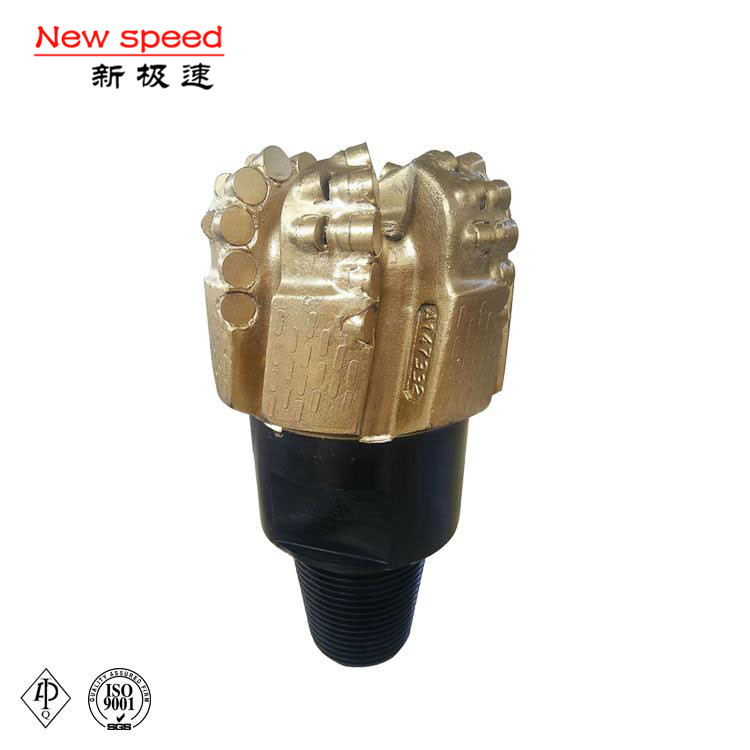

5 7、8 PDC bit M1375
M1375 |
Photo may display one of available options |
Products Speification | |
Number of Blades | 7 |
Primary Cutter Size | 13mm |
Nozzle Qty. | 6NZ |
Gauge Length | 2 Inch |
Operating Parameters | |
RPM (r/min) | 80~300 |
WOB(KN) | 10~80 |
Flow Rate (lps) | 20~35 |
Application | Medium-hard to hard formations with low compressive strength , such as hard shale, limestone, sandstone, dolomite, hard gypsum, marble, etc. |
Features | The M1375 is a matrix body PDC bit with 7 curved blade with back-reaming and spiral gauge protection. Optimized Hydraulie design and enhanced cleaing and cooling effects of the bits to prevent bit from balling. |
