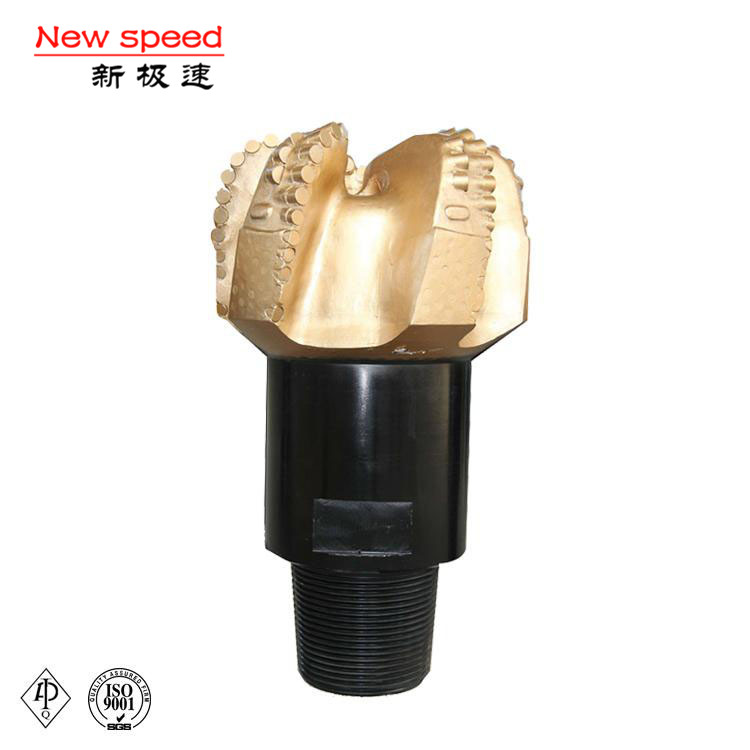

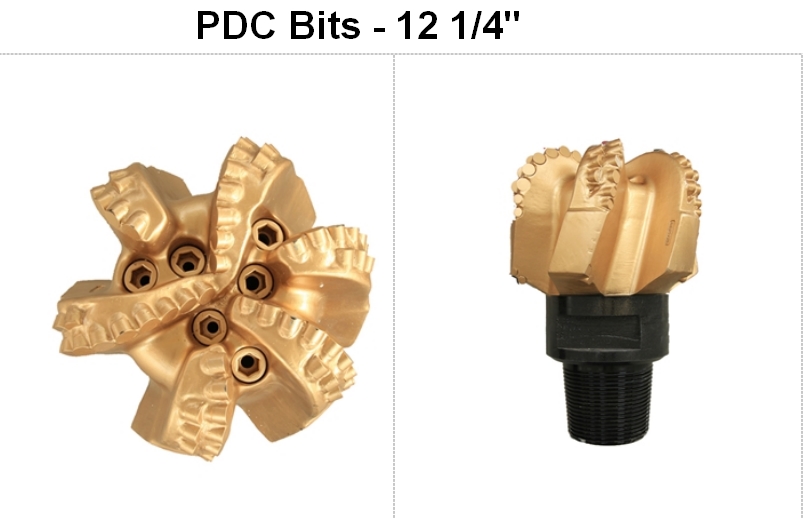

12 1、4 PDC bit M1963
M1963 |
Photo may display one of available options |
Products Speification | |
Number of Blades | 6 |
Primary Cutter Size | 19mm |
Nozzle Qty. | 6NZ |
Gauge Length | 3 Inch |
Operating Parameters | |
RPM (r/min) | 80~250 |
WOB(KN) | 30~140 |
Flow Rate (lps) | 28~75 |
Application | Soft to medium formations with low compressive strength , such as claystone,marl,lignite,sandstone,anhydrite, tuff,etc. |
Features | The M1963 is a matrix body PDC bit with 6 curved blade with back-reaming and spiral gauge protection. Optimized Hydraulie design and enhanced cleaing and cooling effects of the bits to prevent bit from balling. |
